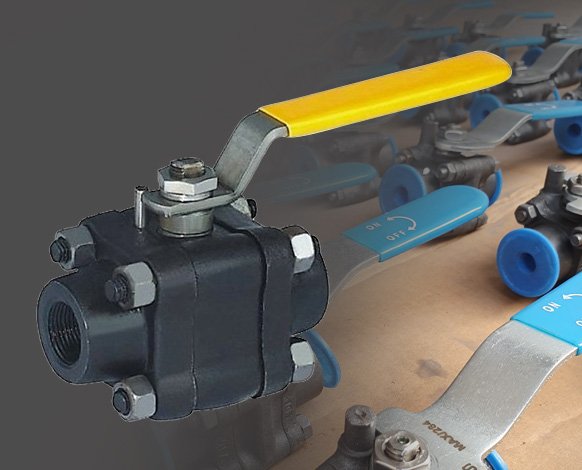

Forged Steel Ball Valve

Forged carbon Steel Ball Valve, Three Piece Design, Socket Weld / Screwed End, Class 150/300/600/800/900/1500/2500, Full Bore, Body, side Pieces as per ASTM A 216 Gr. WCB / ASTM A 105, S.S. 304 Bail and Working Parts, PTFE Seat and Seal, Lever Operated.

Three Piece Design Full / Conventional Port Locking Arrangements

SALIENT FEATURES OF FORGED STEEL VALVE

Compact forged body requires minimum space for installation.
Ensures Maximum Safety and economy.
Precisely Designed
Weld-deposited or Press Fitted Seat Rings.
Seal Welded or Bolted Bonnet design.
Suitable for High Pressure & Temperature applications.
Maintenance friendly.

Size

DN6 to DN50
NPS ¼ to NPS 2

Pressure Rating

150# / 300# / 600#
800# /1500# / 2500#

End Connection type

Socket Weld End Connection
Butt weld End Connection
Screwed End Connection
Flange End Connection
Ring Type Joint (RTJ)

Material of Constructions

Body / End Piece Material:
Forged Carbon & Carbon Alloy Steel:
Carbon Steel, Low Temperature Steel, High Temperature Carbon-Alloy Steel etc.
Forged Stainless, Duplex and Nickel Alloy Steel:
Duplex and Super Duplex Steel of all Grades, Austenitic Stainless Steel of all Grades,
Hastelloy and other High Nickel Alloys.
Trims Material:
SS410 / SS304 / SS316 / SS304L / SS316L

Technical Detail

Design & Manufacturing Standard:
BS 5351 / ASME B16.34
Testing & Inspection Standard:
API 598 / BS 6755 Part-II
Type of Bore:
Regular (Reduced) Standard (Full Bore)
Operated Type:
Pneumatic Actuator, Electric Actuator & Hand Lever
